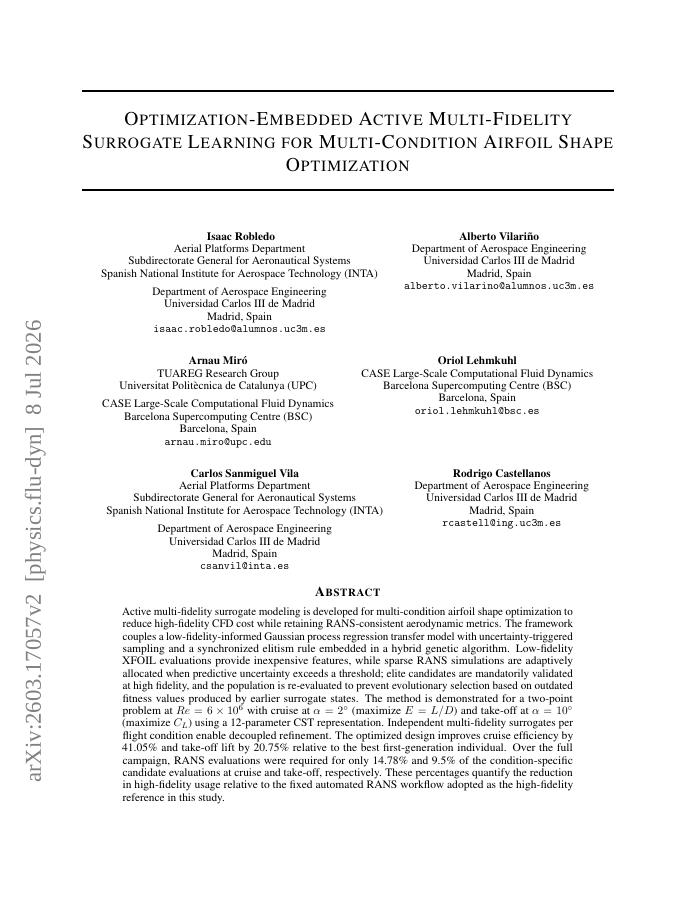

Optimization-Embedded Active Multi-Fidelity Surrogate Learning for Multi-Condition Airfoil Shape Optimization

Active multi-fidelity surrogate modeling is developed for multi-condition airfoil shape optimization to reduce high-fidelity CFD cost while retaining RANS-consistent aerodynamic metrics. The framework couples a low-fidelity-informed Gaussian process regression transfer model with uncertainty-triggered sampling and a synchronized elitism rule embedded in a hybrid genetic algorithm. Low-fidelity XFOIL evaluations provide inexpensive features, while sparse RANS simulations are adaptively allocated when predictive uncertainty exceeds a threshold; elite candidates are mandatorily validated at high fidelity, and the population is re-evaluated to prevent evolutionary selection based on outdated fitness values produced by earlier surrogate states. The method is demonstrated for a two-point problem at Re=6\times10^6 with cruise at α=2^\circ (maximize E=L/D) and take-off at α=10^\circ (maximize C_L) using a 12-parameter CST representation. Independent multi-fidelity surrogates per flight condition enable decoupled refinement. The optimized design improves cruise efficiency by 41.05% and take-off lift by 20.75% relative to the best first-generation individual. Over the full campaign, RANS evaluations were required for only 14.78% and 9.5% of the condition-specific candidate evaluations at cruise and take-off, respectively. These percentages quantify the reduction in high-fidelity usage relative to the fixed automated RANS workflow adopted as the high-fidelity reference in this study.
