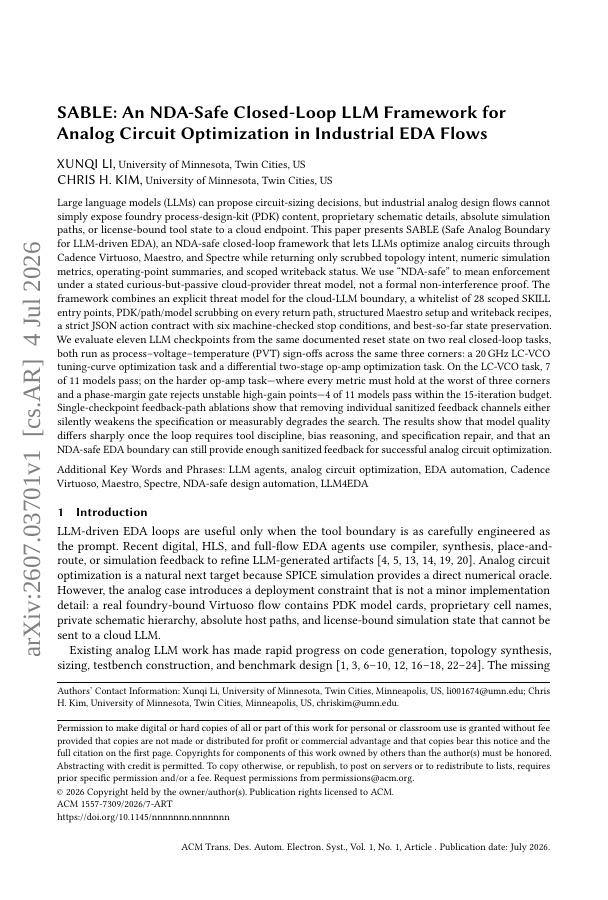

SABLE: An NDA-Safe Closed-Loop LLM Framework for Analog Circuit Optimization in Industrial EDA Flows

Large language models (LLMs) can propose circuit-optimization decisions, but industrial analog flows cannot expose foundry PDK content, proprietary schematics, absolute simulation paths, or license-bound tool state to a cloud endpoint. We present SABLE (Safe Analog Boundary for LLM-driven EDA), an NDA-safe closed-loop framework that lets LLMs optimize analog circuits through Cadence Virtuoso, Maestro, and Spectre while returning only scrubbed topology intent, numeric metrics, operating-point summaries, and scoped writeback status. "NDA-safe" denotes enforcement under a stated curious-but-passive cloud-provider threat model, not a formal non-interference proof. The framework combines an explicit threat model, a whitelist of 28 scoped SKILL entry points, PDK/path/model scrubbing on every return path, structured Maestro setup and writeback, a strict JSON action contract with six machine-checked stop conditions, and best-so-far state preservation. We evaluate eleven LLM checkpoints from the same documented reset state on two real closed-loop tasks, both run as process-voltage-temperature (PVT) sign-offs across three corners: a 20 GHz LC-VCO tuning-curve task and a two-stage op-amp task. On the LC-VCO task 7 of 11 models pass; on the harder op-amp task, where every metric must hold at the worst corner and a phase-margin gate rejects unstable high-gain points, 4 of 11 pass within a 15-iteration budget. Feedback-path ablations show that removing individual sanitized channels either silently weakens the specification or degrades the search. Model quality differs sharply once the loop requires tool discipline, bias reasoning, and specification repair, yet an NDA-safe boundary still provides enough sanitized feedback for successful analog circuit optimization.
