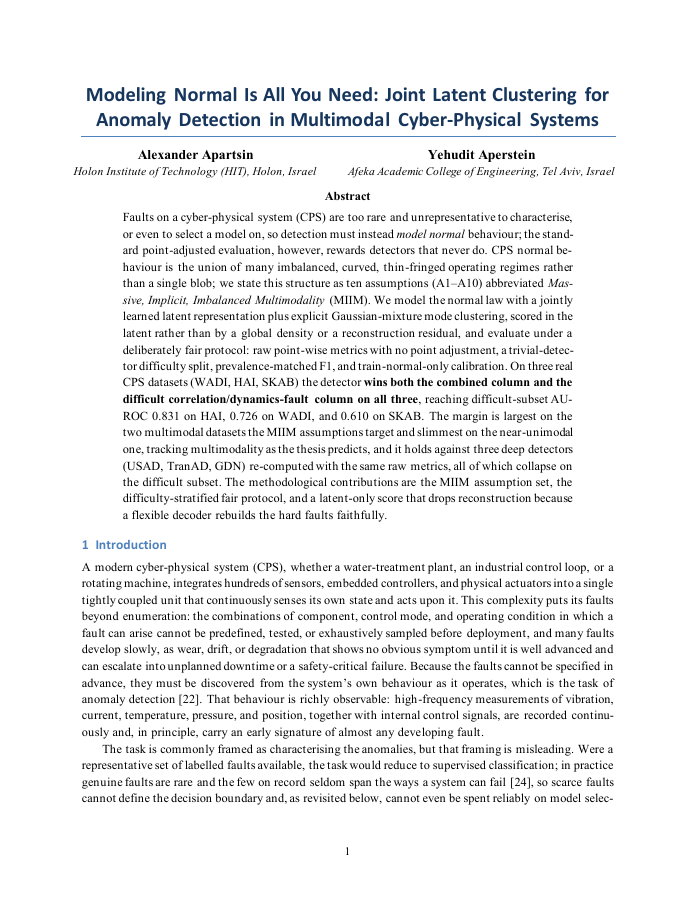

Modeling Normal Is All You Need: Joint Latent Clustering for Anomaly Detection in Multimodal Cyber-Physical Systems

Faults on a cyber-physical system (CPS) are too rare and unrepresentative to characterise, or even to select a model on, so detection must instead model normal behaviour; the standard point-adjusted evaluation, however, rewards detectors that never do. CPS normal behaviour is the union of many imbalanced, curved, thin-fringed operating regimes rather than a single blob; we state this structure as ten assumptions (A1-A10), abbreviated Massive, Implicit, Imbalanced Multimodality (MIIM). We model the normal law with a jointly learned latent representation plus explicit Gaussian-mixture mode clustering, scored in the latent rather than by a global density or a reconstruction residual, and evaluate under a deliberately fair protocol: raw point-wise metrics with no point adjustment, a trivial-detector difficulty split, prevalence-matched F1, and train-normal-only calibration. On three real CPS datasets (WADI, HAI, SKAB), the detector wins both the combined column and the difficult correlation/dynamics-fault column on all three, reaching difficult-subset AUROC 0.831 on HAI, 0.726 on WADI, and 0.610 on SKAB. The margin is largest on the two multimodal datasets the MIIM assumptions target and slimmest on the near-unimodal one, tracking multimodality as the thesis predicts, and it holds against three deep detectors (USAD, TranAD, GDN) re-computed with the same raw metrics, all of which collapse on the difficult subset. The methodological contributions are the MIIM assumption set, the difficulty-stratified fair protocol, and a latent-only score that drops reconstruction because a flexible decoder rebuilds the hard faults faithfully.
