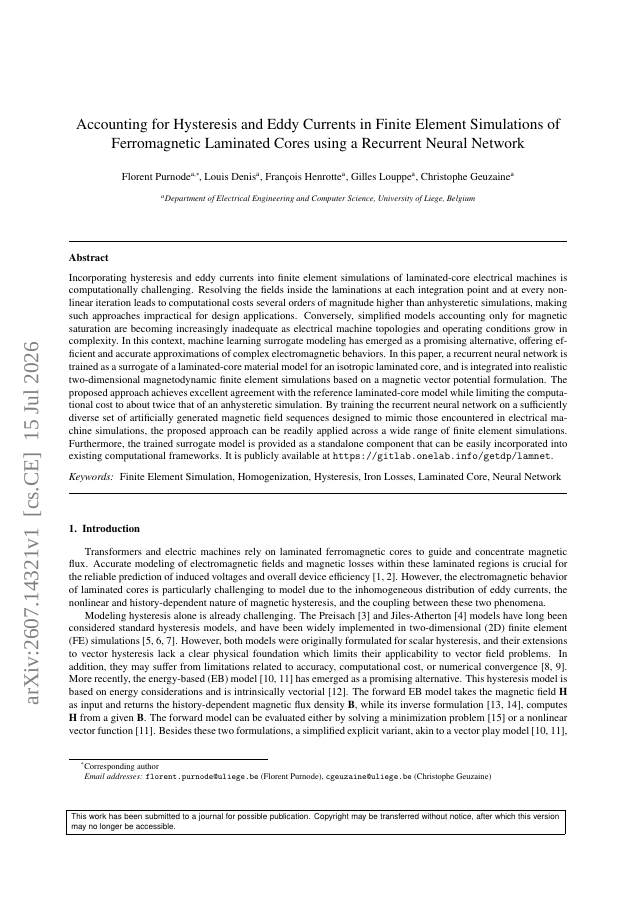

Accounting for Hysteresis and Eddy Currents in Finite Element Simulations of Ferromagnetic Laminated Cores using a Recurrent Neural Network

Incorporating hysteresis and eddy currents into finite element simulations of laminated-core electrical machines is computationally challenging. Resolving the fields inside the laminations at each integration point and at every nonlinear iteration leads to computational costs several orders of magnitude higher than anhysteretic simulations, making such approaches impractical for design applications. Conversely, simplified models accounting only for magnetic saturation are becoming increasingly inadequate as electrical machine topologies and operating conditions grow in complexity. In this context, machine learning surrogate modeling has emerged as a promising alternative, offering efficient and accurate approximations of complex electromagnetic behaviors. In this paper, a recurrent neural network is trained as a surrogate of a laminated-core material model for an isotropic laminated core, and is integrated into realistic two-dimensional magnetodynamic finite element simulations based on a magnetic vector potential formulation. The proposed approach achieves excellent agreement with the reference laminated-core model while limiting the computational cost to about twice that of an anhysteretic simulation. By training the recurrent neural network on a sufficiently diverse set of artificially generated magnetic field sequences designed to mimic those encountered in electrical machine simulations, the proposed approach can be readily applied across a wide range of finite element simulations. Furthermore, the trained surrogate model is provided as a standalone component that can be easily incorporated into existing computational frameworks. It is publicly available at https://gitlab.onelab.info/getdp/lamnet.
