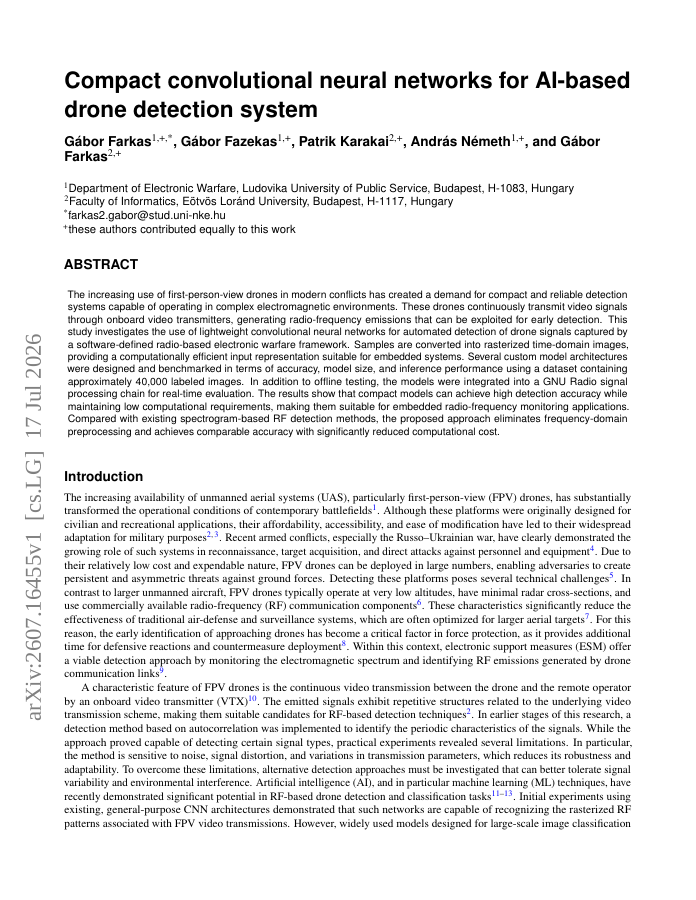

Compact convolutional neural networks for AI-based drone detection system

The increasing use of first-person-view drones in modern conflicts has created a demand for compact and reliable detection systems capable of operating in complex electromagnetic environments. These drones continuously transmit video signals through onboard video transmitters, generating radio-frequency emissions that can be exploited for early detection. This study investigates the use of lightweight convolutional neural networks for automated detection of drone signals captured by a software-defined radio-based electronic warfare framework. Samples are converted into rasterized time-domain images, providing a computationally efficient input representation suitable for embedded systems. Several custom model architectures were designed and benchmarked in terms of accuracy, model size, and inference performance using a dataset containing approximately 40,000 labeled images. In addition to offline testing, the models were integrated into a GNU Radio signal processing chain for real-time evaluation. The results show that compact models can achieve high detection accuracy while maintaining low computational requirements, making them suitable for embedded radio-frequency monitoring applications. Compared with existing spectrogram-based RF detection methods, the proposed approach eliminates frequency-domain preprocessing and achieves comparable accuracy with significantly reduced computational cost.
