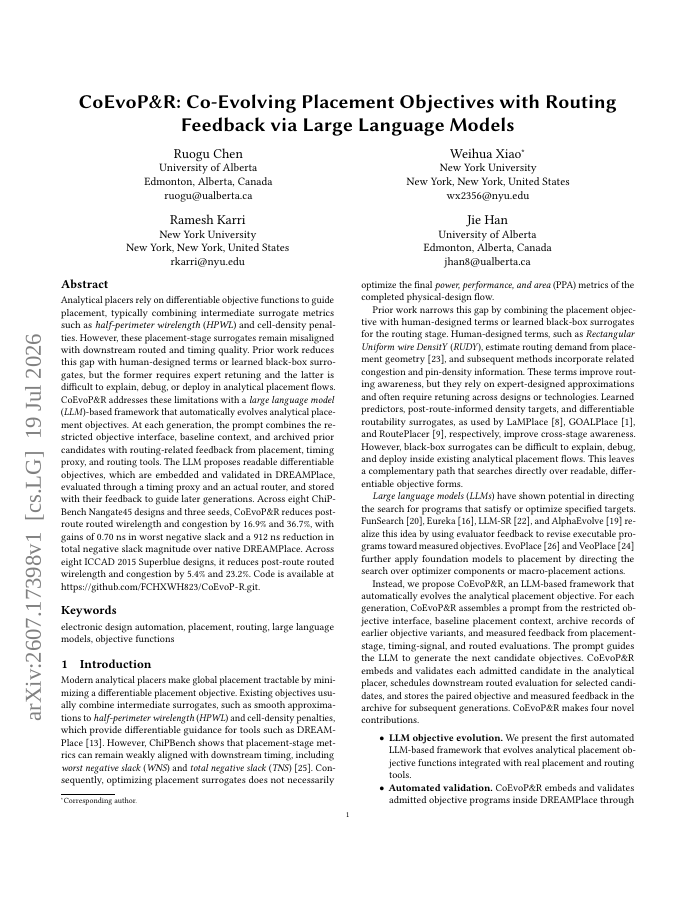

CoEvoP&R: Co-Evolving Placement Objectives with Routing Feedback via Large Language Models

Analytical placers rely on differentiable objective functions to guide placement, typically combining intermediate surrogate metrics such as half-perimeter wirelength (HPWL) and cell-density penalties. However, these placement-stage surrogates remain misaligned with downstream routed and timing quality. Prior work reduces this gap with human-designed terms or learned black-box surrogates, but the former requires expert retuning and the latter is difficult to explain, debug, or deploy in analytical placement flows. CoEvoP&R addresses these limitations with a large language model (LLM)-based framework that automatically evolves analytical placement objectives. At each generation, the prompt combines the restricted objective interface, baseline context, and archived prior candidates with routing-related feedback from placement, timing proxy, and routing tools. The LLM proposes readable differentiable objectives, which are embedded and validated in DREAMPlace, evaluated through a timing proxy and an actual router, and stored with their feedback to guide later generations. Across eight ChiP-Bench Nangate45 designs and three seeds, CoEvoP&R reduces post-route routed wirelength and congestion by 16.9% and 36.7%, with gains of 0.70 ns in worst negative slack and a 912 ns reduction in total negative slack magnitude over native DREAMPlace. Across eight ICCAD 2015 Superblue designs, it reduces post-route routed wirelength and congestion by 5.4% and 23.2%. Code is available at https://github.com/FCHXWH823/CoEvoP-R.git.
