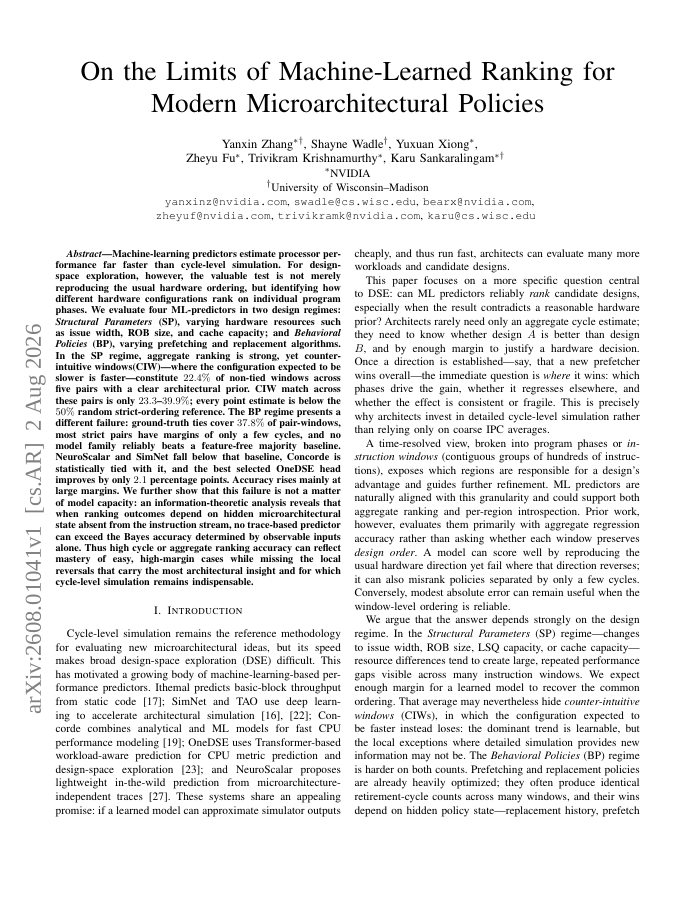

On the Limits of Machine-Learned Ranking for Modern Microarchitectural Policies

Machine-learning predictors estimate processor performance far faster than cycle-level simulation. For design-space exploration, however, the valuable test is not merely reproducing the usual hardware ordering, but identifying how different hardware configurations rank on individual program phases. We evaluate four ML-predictors in two design regimes: Structural Parameters (SP), varying hardware resources such as issue width, ROB size, and cache capacity; and Behavioral Policies (BP), varying prefetching and replacement algorithms. In the SP regime, aggregate ranking is strong, yet counter-intuitive windows(CIW)---where the configuration expected to be slower is faster---constitute 22.4% of non-tied windows across five pairs with a clear architectural prior. CIW match across these pairs is only 23.3--39.9%; every point estimate is below the 50% random strict-ordering reference. The BP regime presents a different failure: ground-truth ties cover 37.8% of pair-windows, most strict pairs have margins of only a few cycles, and no model family reliably beats a feature-free majority baseline. NeuroScalar and SimNet fall below that baseline, Concorde is statistically tied with it, and the best selected OneDSE head improves by only 2.1 percentage points. Accuracy rises mainly at large margins. We further show that this failure is not a matter of model capacity: an information-theoretic analysis reveals that when ranking outcomes depend on hidden microarchitectural state absent from the instruction stream, no trace-based predictor can exceed the Bayes accuracy determined by observable inputs alone. Thus high cycle or aggregate ranking accuracy can reflect mastery of easy, high-margin cases while missing the local reversals that carry the most architectural insight and for which cycle-level simulation remains indispensable.
