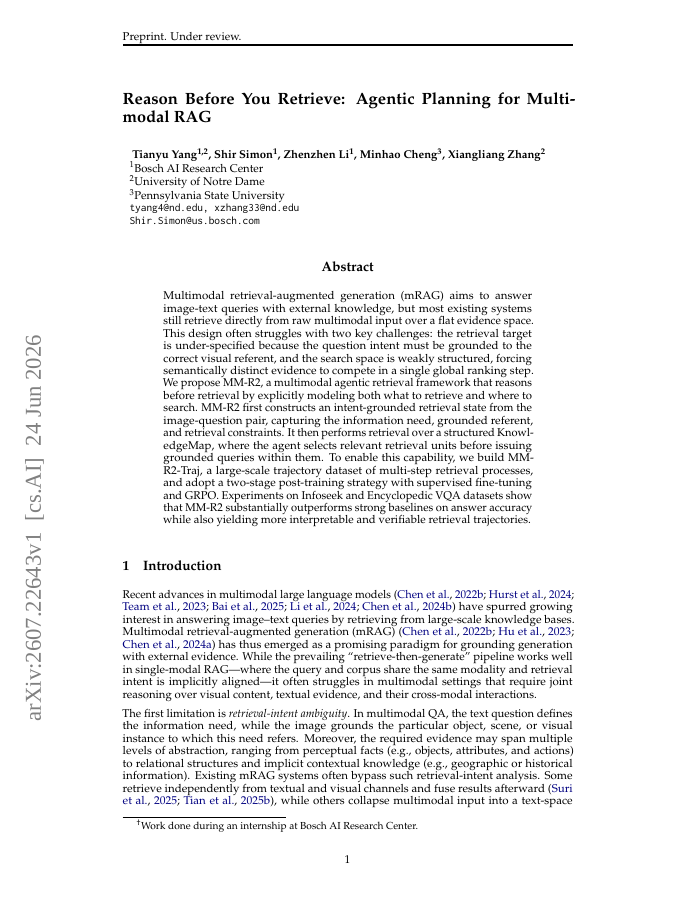

Reason Before You Retrieve: Agentic Planning for Multi-modal RAG

Multimodal retrieval-augmented generation (mRAG) aims to answer image-text queries with external knowledge, but most existing systems still retrieve directly from raw multimodal input over a flat evidence space. This design often struggles with two key challenges: the retrieval target is under-specified because the question intent must be grounded to the correct visual referent, and the search space is weakly structured, forcing semantically distinct evidence to compete in a single global ranking step. We propose MM-R2, a multimodal agentic retrieval framework that reasons before retrieval by explicitly modeling both what to retrieve and where to search. MM-R2 first constructs an intent-grounded retrieval state from the image-question pair, capturing the information need, grounded referent, and retrieval constraints. It then performs retrieval over a structured KnowledgeMap, where the agent selects relevant retrieval units before issuing grounded queries within them. To enable this capability, we build MM-R2-Traj, a large-scale trajectory dataset of multi-step retrieval processes, and adopt a two-stage post-training strategy with supervised fine-tuning and GRPO. Experiments on Infoseek and Encyclopedic VQA datasets show that MM-R2 substantially outperforms strong baselines on answer accuracy while also yielding more interpretable and verifiable retrieval trajectories.
